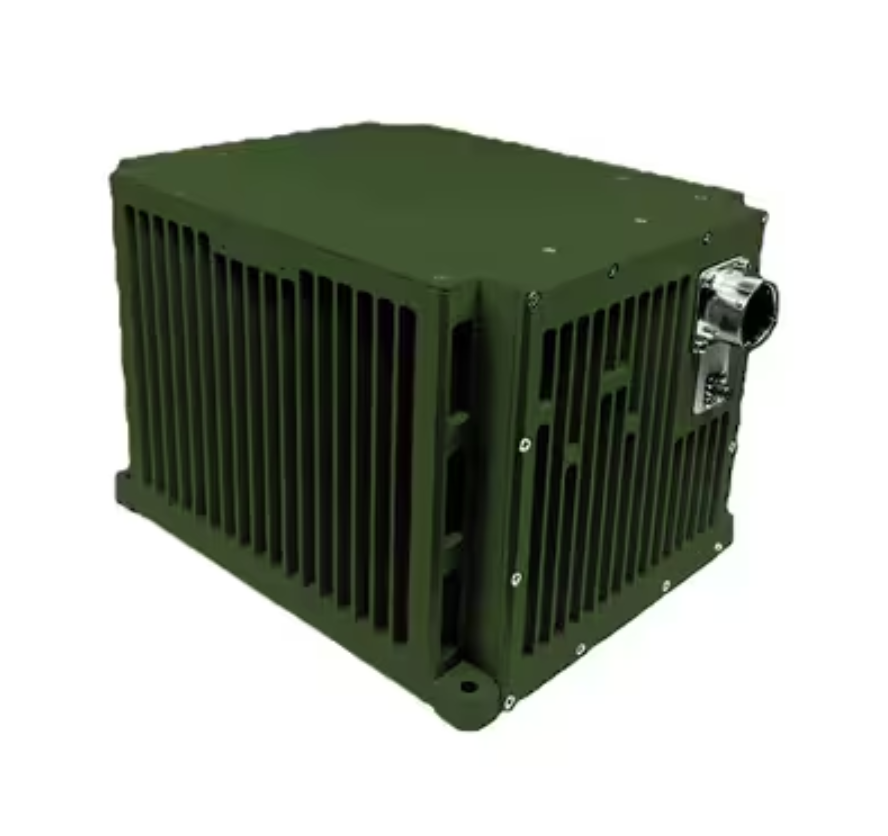

Land RLG INS (INT-D-L4)

This tactical-grade vehicular navigation system features RLG/FOG technology with quartz accelerometers in a ruggedized strapdown configuration. Providing continuous positioning through ZUPT and sensor fusion, it ensures operational capability in extreme conditions (-65° latitude to Arctic environments).

Deployment platforms include: Main battle tanks, self-propelled guns, IFVs, and unmanned systems.

Battlefield features:

1) Rapid alignment;

2) GNSS-denied navigation;

3) Extreme climate operation;

4) EMI-hardened reliability.

Series			Land Inertial Navigation System(INS-L)
Type			INT-D-L4
Accelerometer	Months Bias Repeatability(1σ)		≤10μg
	Months Scale Factor Accuracy(1σ)		≤10ppm
Gyro	Bias Repeatability(1σ)		≤0.003°/h
	Scale Factor Accuracy(1σ)		≤5ppm
	Random walk(1σ)		≤0.001°/√hr
Features	Angular Rate		≥±400°/sec
	Angular Acceleration		100000°/sec2
	Acceleration		＞25g
	Angular Attitude		Any Orientation
	Input/output		3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time			≤8min
Position accuracy	10min zero speed correction		≤7m,CEP
	INS/Odometer combination		≤0.1%D,RMS
	INS/GNSS combination		better than GNSS
AHRS Applications Performance	Heading Accuracy	North finding/orientation accuracy	≤0.5mil,RMS
		Heading bearing keeping accuracy/2h	≤0.5mil,RMS
		INS/GNSS combination	≤0.3mil,RMS
	Pitch & Roll Accuracy		≤0.2mil,RMS
Characteristics	Power consumption		＜30W
	Dimensions		232×186×160mm
	Weight		＜8kg
	Temperature		-40℃~60℃
	Shock		15g,Half-sine wave 11ms
	Input Voltage		DC24V(±25%)
	cooling		Conduction to mounting plate
	Vibration		20~2000Hz,6.06g
	MTBF		＞20000 hours
