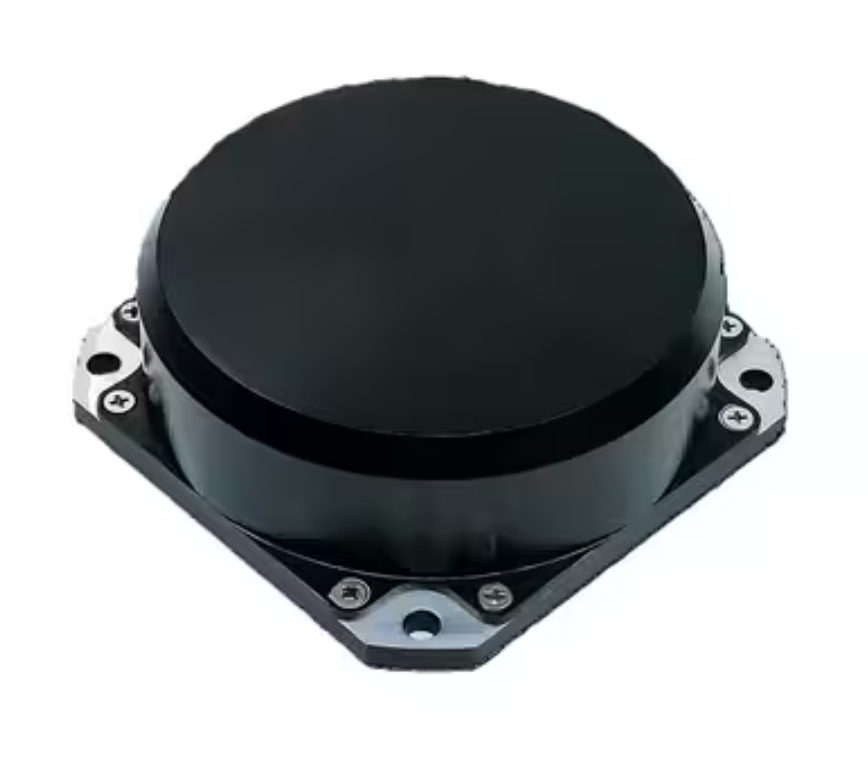

Single-Axis Lightweight Digital FOG Gyroscope for High-Precision Inertial Navigation System (INS)

stars, based on 0reviews
1000items available
Add inquiry cart Inquire Now

Detail Information
Place of Origin
China
Brand Name
INT
Model Number
FOG（INT-F50S）
Performance\Dynamic Range:
≥±400°/s
Performance\Bias In-run:
＜2°/h
Performance\Accuracy（10sec）:
0.5°/h~0.2°/h
Performance\ARW（Angular Random Walk）:
＜0.03°/√hr,1σ
Performance\Vibration Screening:
20~2000Hz，6.06g
Performance\Bandwidth:
＞200Hz
Electrical Interface\Turn On Time:
10s
Electrical Interface\Output Signal Format:
RS-422
Electrical Interface\Built In Self-test:
--
Electrical Interface\Output Signal Update Rate:
500Hz~4000Hz
Electrical Interface\Output Signal Baud Rate:
115200bps~921600bps
Electrical Interface\Operating Temperature:
- 40℃ ~ + 70℃
Electrical Interface\Storage Temperature:
- 55℃ ~ + 85℃
Physical Specifications\Power Supply:
5V
Physical Specifications\Connector (9 Pins):
J30J-15TJL
Physical Specifications\Power Consumption:
≤3w
Physical Specifications\MTBF (per MIL-HDBK-217-F):
＞150000hr
Physical Specifications\Weight:
≤160g
Physical Specifications\Dimensions:
50mm×50mm×30mm
Product Description

The INT-F50S Fiber Optic Gyroscope (FOG) is a high-performance angular rate sensor based on the Sagnac optical effect, utilizing all-digital closed-loop detection technology. It delivers real-time angular velocity output exceeding 4 kHz via a serial interface. The series includes single-axis, dual-axis, and three-axis configurations, with multi-axis variants sharing a common light source and processing circuitry for synchronous orthogonal axis measurement.

Applications:

  • Guidance systems and tactical missiles

  • Attitude control and stabilization platforms

  • Torpedoes and naval systems

  • Industrial stabilization and precision equipment

Key Features:

  1. Compact, lightweight, and modular design for easy integration

  2. All-solid-state construction with no moving parts

  3. Instant startup with digital interface for rapid deployment

  4. Low noise, low power consumption, and cost-efficient operation

  5. High reliability with extended operational lifespan

Keywords: INT-F50S, single-axis FOG gyroscope, digital fiber optic gyroscope, high-precision INS, inertial navigation system, angular rate sensor, multi-axis FOG, tactical missile navigation, industrial stabilization gyroscope, lightweight gyroscope

SeriesFOG Series
TypeINT-F50S
PerformanceDynamic Range≥±400°/s
Bias in-run ＜2°/h
Accuracy(10sec)0.5°/h~0.2°/h
ARW(Angular random walk)＜0.03°/√hr,1σ
Vibration screening20~2000Hz,6.06g
Bandwidth＞200Hz
Electrical InterfaceTurn on time10s
Output signal formatRS-422
Built in self-test --
Output signal update rate500Hz~4000Hz
Output signal baud rate115200bps~921600bps
Operating temperature - 40℃ ~ + 70℃
Storage temperature - 55℃ ~ + 85℃
Physical SpecificationsPower supply5V
Connector (9 pins)J30J-15TJL
Power consumption≤3W
MTBF (per MIL-HDBK-217-F)＞150000hr
Weight≤160g
Dimensions50mm×50mm×30mm
