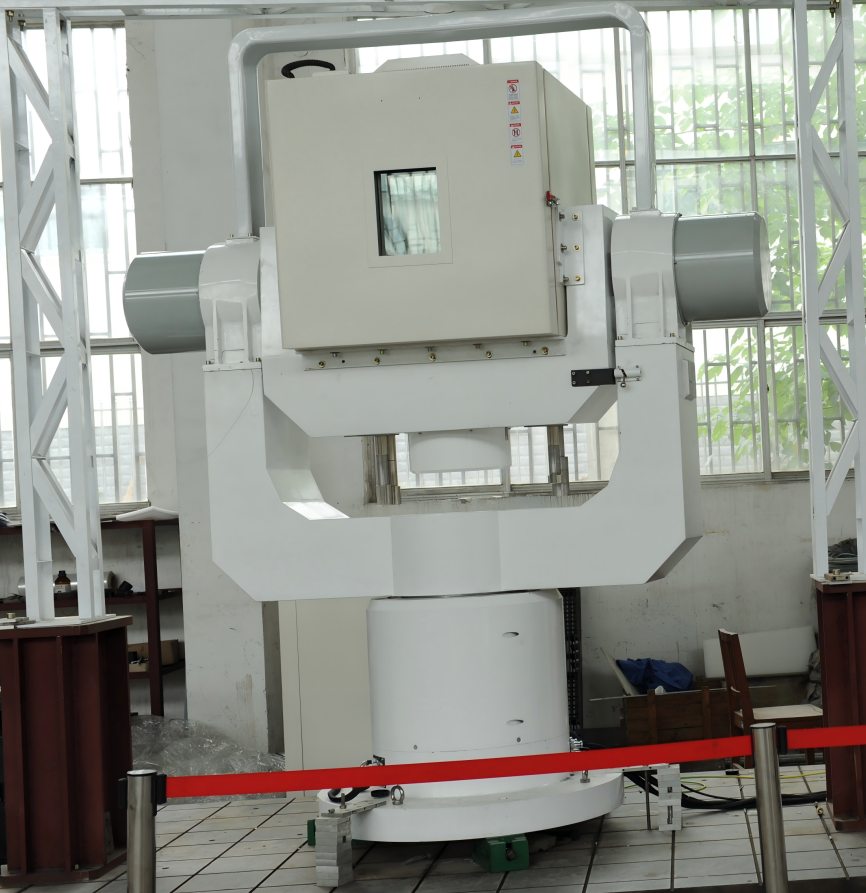

INT-WKZT3 Series Three-Axis Turntable with Temperature Chamber

Three-Axis Turntable with Temperature Chamber:

Main Technical Specifications:

Tabletop Residual Magnetism: ≤1Gs (1cm above table surface)

Tilt Error: ±2 arcsec

Axes Perpendicularity: ±2 arcsec

Maximum Three-Axis Linkage Speed: ±60°/s

Speed Resolution: 0.0001°/s

Rotational Angle Range: Continuous unlimited rotation

Operating Modes: Positioning, rate control, swing motion

Angular Position Measurement Accuracy: ±2 arcsec

Angular Position Measurement Resolution: 0.36 arcsec

Angular Position Measurement Repeatability: ±1 arcsec

Angular Position Control Accuracy: ±1 arcsec

Speed Accuracy & Stability: 1×10⁻³ (1° average); 1×10⁻⁴ (10° average); 1×10⁻⁵ (360° average)

Maximum Acceleration: Inner axis 500°/s²; Middle axis 200°/s²; Outer axis 100°/s²

Slip Ring: Customizable user interface (electromagnetic noise ≤ 100mV)

Swing Parameters:

Inner axis (Roll): Swing amplitude 0° ~ ±45°, Swing period ≥40s, Phase adjustable

Middle axis (Pitch): Swing amplitude 0° ~ ±10°, Swing period ≥10s, Phase adjustable

Outer axis (Yaw): Swing amplitude 0° ~ ±200°, Swing period 5s ~ 50s, Phase adjustable

Temperature Chamber Size: 850mm (W) × 850mm (D) × 700mm (H)

Temperature Range: -55℃ ~ +125℃

Temperature Control Accuracy & Uniformity: ≤±1℃ (empty chamber)

Speed Range:

Inner axis: ±0.001 ~ 400°/s

Middle axis: ±0.001 ~ 300°/s

Outer axis: ±0.001 ~ 200°/s.
