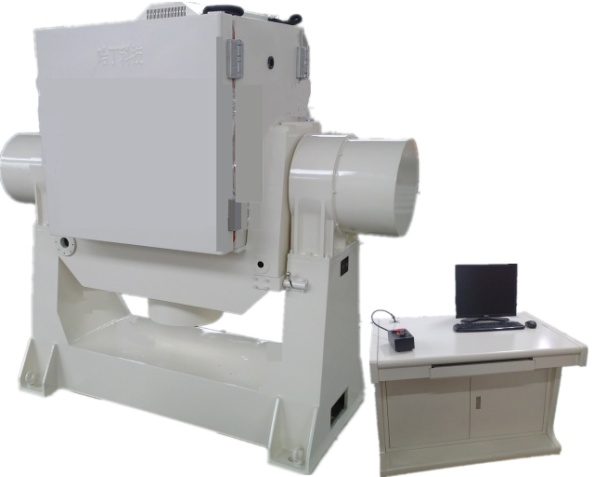

INT-WKZT2 Series Dual-Axis Turntable with Temperature Chamber

Dual-Axis Turntable with Temperature Chamber:

Main Technical Specifications:

Tabletop Runout: 0.02mm

Tilt Error: ±2 arcsec

Axes Perpendicularity: ±3 arcsec

Rotational Angle Range: Continuous unlimited rotation

Operating Modes: Positioning, rate control, swing motion

Speed Range: Inner axis ±0.001°/s ~ 600°/s; Outer axis ±0.001°/s ~ 300°/s

Speed Accuracy & Stability: 1×10⁻³ (1° average); 1×10⁻⁴ (10° average); 1×10⁻⁵ (360° average)

Maximum Acceleration: Inner axis 500°/s²; Outer axis 200°/s²

Angular Position Measurement Accuracy: ±2 arcsec

Angular Position Measurement Resolution: 0.36 arcsec

Angular Position Measurement Repeatability: ±1 arcsec

Angular Position Control Accuracy: ±2 arcsec

Slip Ring: Customizable user interface (electromagnetic noise ≤ 100mV)

Temperature Chamber Size (Optional): 550mm (W) × 600mm (D) × 520mm (H)

Temperature Range: -45℃ ~ +70℃

Temperature Control Accuracy & Uniformity: ±1℃ (empty chamber)

Temperature Ramp Rate: 1℃/min ~ 2℃/min.
