INT-WKZT1 Series Single-Axis Turntable with Temperature Chamber

Main Technical Specifications:

Tabletop Flatness: 0.01mm

Tabletop Runout: 0.02mm

Tilt Error: ±2 arcsec

Speed Range: Inner axis ±0.001°/s ~ 500°/s

Speed Accuracy & Stability: 1×10⁻³ (1° average); 1×10⁻⁴ (10° average); 1×10⁻⁵ (360° average)

Maximum Acceleration: 500°/s²

Slip Ring: Customizable user interface (electromagnetic noise ≤ 100mV)

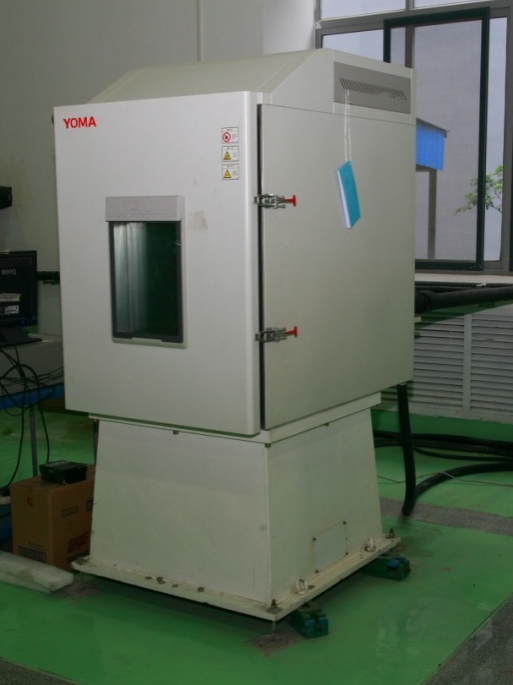

Temperature Chamber Size (Optional): 700mm (W) × 700mm (D) × 700mm (H)

Temperature Range: -55℃ ~ +100℃

Temperature Control Accuracy & Uniformity: ±1℃ (empty chamber).
