INT-M-L05 Vehicle Optical Gyro Inertial Navigation Unit Navigational FOG Gyroscope

stars, based on 0reviews
1000items available
Add inquiry cart Inquire Now
Product Description

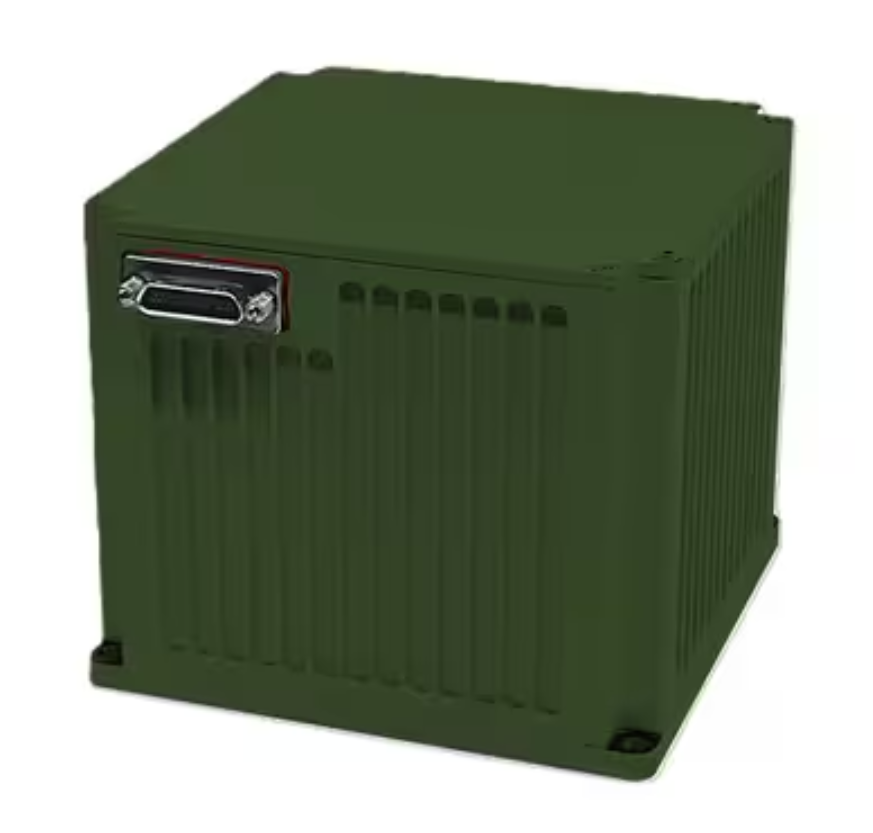

Land FOG INS (INT-M-L05)


Vehicle optical POS with RLG/FOG and quartz accelerometers in strapdown configuration. Features: real-time navigation, ZUPT, and multi-sensor fusion. Applications: military vehicles, UGVs, rail, and agriculture. Capabilities: 1) Static/moving alignment; 2) GNSS-denied operation; 3) Extreme environment performance; 4) High reliability.

SeriesLand Inertial Navigation System(INS-L)
TypeINT-M-L05
AccelerometerMonths Bias Repeatability(1σ)≤30μg
Months Scale Factor Accuracy(1σ)≤30ppm
GyroBias Repeatability(1σ)≤0.01°/h
Scale Factor Accuracy(1σ)≤30ppm
Random walk(1σ)≤0.003°/√hr
FeaturesAngular Rate≥±400°/sec
Angular Acceleration100000°/sec2
Acceleration＞25g
Angular Attitude Any Orientation
Input/output3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time≤5min
Position accuracy10min zero speed correction≤20m,CEP
INS/Odometer combination≤0.4%D,RMS
INS/GNSS combinationbetter than GNSS
AHRS Applications PerformanceHeading AccuracyNorth finding/orientation accuracy≤2.0mil,RMS
Heading bearing keeping accuracy/2h≤2.0mil,RMS
INS/GNSS combination≤1.0mil,RMS
Pitch & Roll Accuracy≤0.5mil,RMS
CharacteristicsPower consumption＜15W
Dimensions130×130×100mm
Weight＜2.2kg
Temperature -40℃~60℃
Shock15g,Half-sine wave 11ms
Input VoltageDC24V(±25%)
coolingConduction to mounting plate
Vibration 20~2000Hz,6.06g
MTBF＞20000 hours
