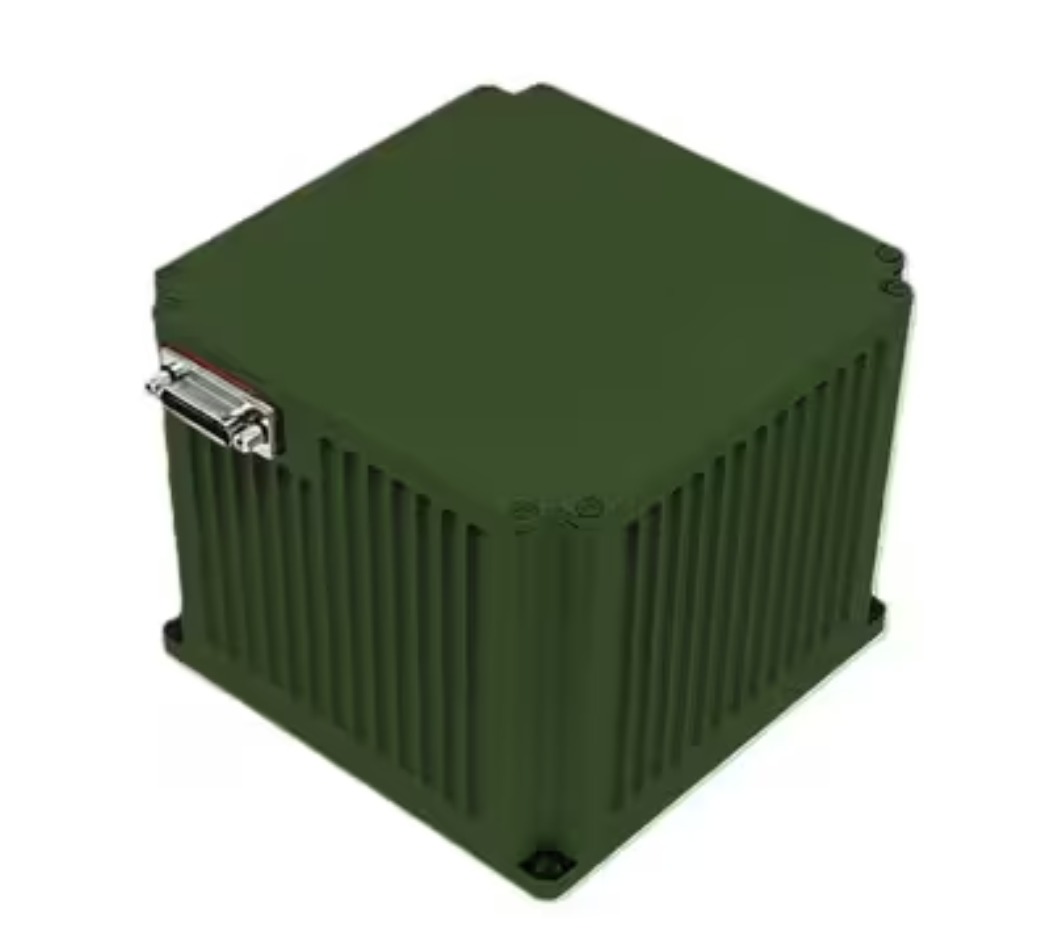

Land FOG INS (INT-M-L03)
The vehicle-mounted optical gyroscope positioning and orientation equipment uses laser or fiber optic gyroscope and quartz accelerometer as the core sensors, adopts strapdown technology system, runs advanced navigation software, and outputs navigation information in real time. This series of products has a variety of working modes such as zero-speed correction, inertial/satellite guidance combination, inertial/odometer combination, etc., which can provide users with full-parameter navigation information of carriers and meet the needs of various vehicle platforms.
| Series | Land Inertial Navigation System(INS-L) | ||
| Type | INT-M-L03 | ||
| Accelerometer | Months Bias Repeatability(1σ) | ≤50μg | |
| Months Scale Factor Accuracy(1σ) | ≤50ppm | ||
| Gyro | Bias Repeatability(1σ) | ≤0.02°/hr | |
| Scale Factor Accuracy(1σ) | ≤50ppm | ||
| Random walk(1σ) | ≤0.006°/√hr | ||
| Features | Angular Rate | ≥±400°/sec | |
| Angular Acceleration | 100000°/sec2 | ||
| Acceleration | ＞40g | ||
| Angular Attitude | Any Orientation | ||
| Input/output | 3 RS422 full-duplex serial ports, 1 100M Ethernet port | ||
| Alignment time | ≤5min | ||
| Position accuracy | 10min zero speed correction | ≤50m,CEP | |
| INS/Odometer combination | ≤1%D,RMS | ||
| INS/GNSS combination | better than GNSS | ||
| AHRS Applications Performance | Heading Accuracy | North finding/orientation accuracy | ≤4.0mil,RMS |
| Heading bearing keeping accuracy/2h | ≤4.0mil,RMS | ||
| INS/GNSS combination | ≤2.0mil,RMS | ||
| Pitch & Roll Accuracy | ≤1.0mil,RMS | ||
| Characteristics | Power consumption | ＜15W | |
| Dimensions | 110×110×100mm | ||
| Weight | ＜1.7kg | ||
| Temperature | -40℃~60℃ | ||
| Shock | 15g,Half-sine wave 11ms | ||
| Input Voltage | DC24V(±25%) | ||
| cooling | Conduction to mounting plate | ||
| Vibration | 20~2000Hz,6.06g | ||
| MTBF | ＞20000 hours | ||
