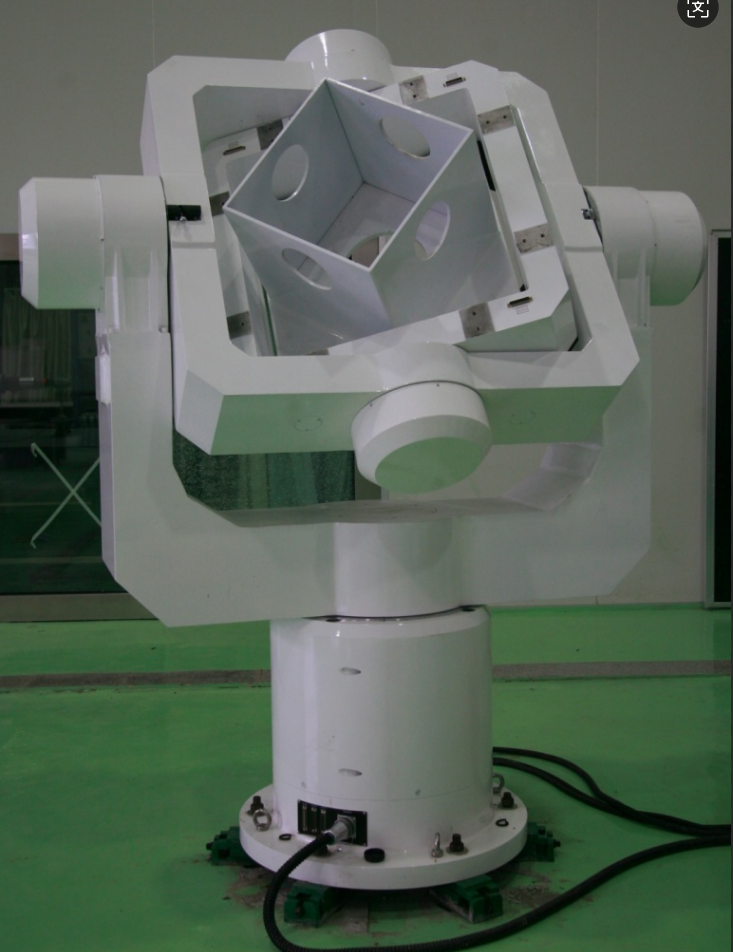

INT-DZT3 Series Three-Axis Turntable

Main Technical Specifications：

Tilt Error: Inner axis ±1.5 arcsec; Middle axis ±2 arcsec; Outer axis ±1.5 arcsec

Axes Perpendicularity: ±2 arcsec

Rotational Angle Range: Continuous unlimited rotation

Operating Modes: Positioning, rate control, swing motion

Angular Position Measurement Accuracy: ±2 arcsec

Angular Position Measurement Resolution: 0.36 arcsec

Angular Position Measurement Repeatability: ±1 arcsec

Angular Position Control Accuracy: ±2 arcsec

Speed Range: Inner axis 0.001°/s ~ 300°/s; Middle axis 0.001°/s ~ 200°/s; Outer axis 0.001°/s ~ 150°/s

Speed Resolution: 0.0001°/s

Speed Accuracy & Stability: 1×10⁻³ (1° average); 1×10⁻⁴ (10° average); 1×10⁻⁵ (360° average)

Maximum Acceleration: Inner axis 200°/s²; Middle axis 150°/s²; Outer axis 150°/s²

Slip Ring: Customizable user interface (electromagnetic noise ≤ 100mV)

Sinusoidal Swing Parameters:

Inner axis: Amplitude ±45°, Period 2s ~ 30s

Middle axis: Amplitude ±45°, Period 2s ~ 30s

Outer axis: Amplitude ±30°, Period 2s ~ 30s
