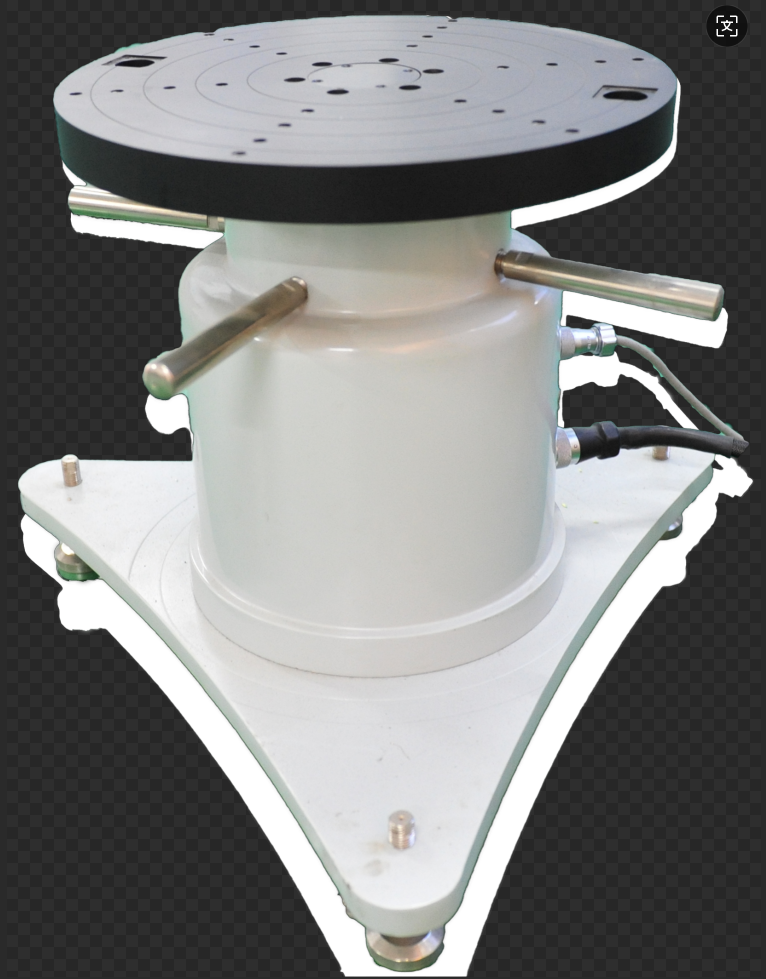

INT-DZT1 Series Single-Axis Turntable

Main Technical Specifications

Load Capacity: 40kg

Tabletop Flatness: ＜0.01mm

Tabletop Diameter: Φ420mm

Tabletop Runout: 0.01mm (at Φ400mm radius)

Tilt Error: ±1 arcsec

Operating Modes: Positioning, rate control, swing motion

Control Cabinet: Customized operation console

Safety Features: Emergency power-off protection for overspeed conditions

Angular Position Measurement Accuracy: ±1 arcsec

Angular Position Measurement Resolution: 0.36 arcsec

Angular Position Measurement Repeatability: ±1 arcsec

Speed Range: 0.001°/s to 800°/s

Speed Accuracy & Stability: 1×10⁻³ (1° average); 1×10⁻⁴ (10° average); 1×10⁻⁵ (360° average)

Slip Ring: Customizable user interface (electromagnetic noise ≤ 100mV).
