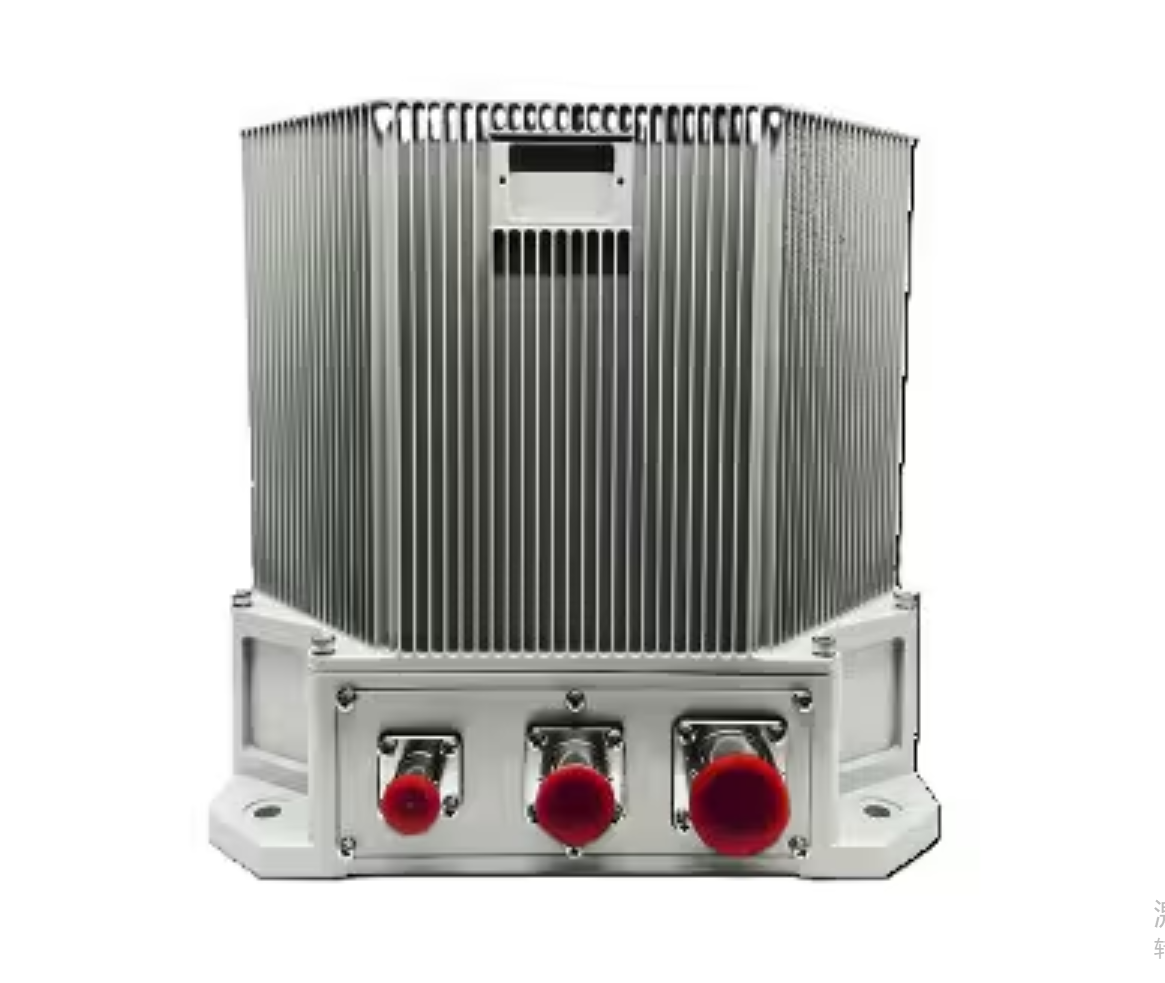

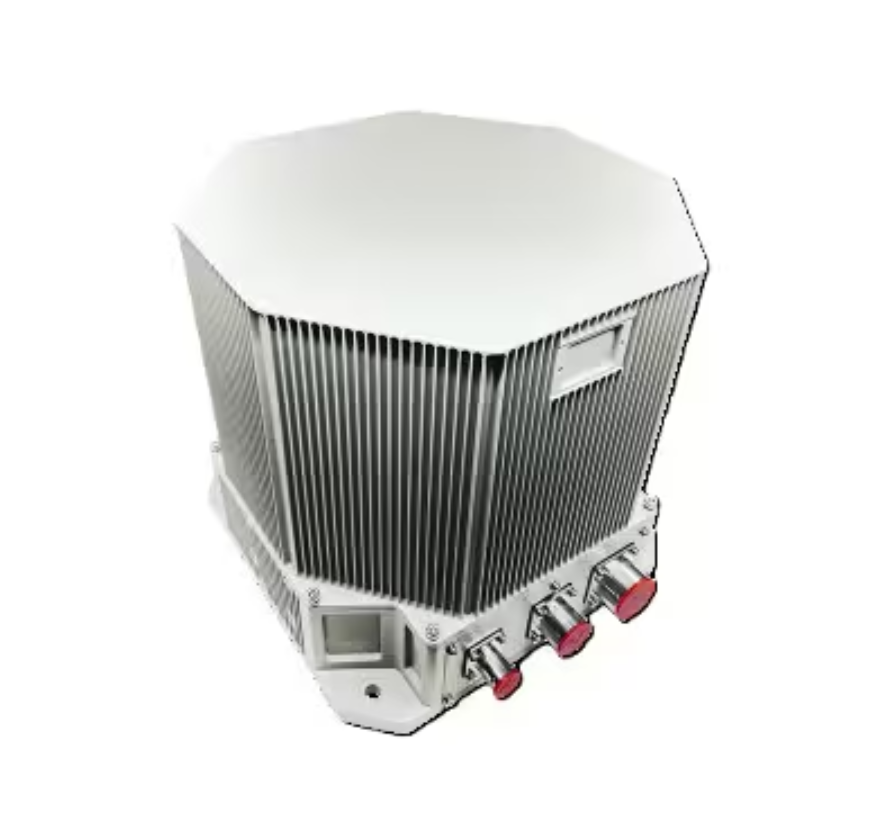

INT-D-M48 High Precision Velocity Integrated Marine Inertial Navigation System Laser Gyro


Maritime RLG INS



The long-endurance, high-precision marine optical INS employs laser/FOG gyros and quartz flexure accelerometers as core sensors. Utilizing a "strapdown + modulation" technical architecture with advanced navigation algorithms, it delivers real-time navigation solutions. Offering multiple operational modes (pure inertial, GNSS-aided, and velocity-integrated), the system provides enhanced full-state navigation parameters to meet various marine platform requirements.

SeriesMaritime Inertial Navigation System(INS-M)
TypeINT-D-M48
AccelerometerMonths Bias Repeatability(1σ)≤10μg
Months Scale Factor Accuracy(1σ)≤10ppm
GyroBias Repeatability(1σ)≤0.01°/hr
Scale Factor Accuracy(1σ)≤10ppm
Random walk(1σ)≤0.003°/√hr
FeaturesAngular Rate≥±400°/sec
Angular Acceleration100000°/sec2
Acceleration＞25g
Angular Attitude Any Orientation
Speed accuracy/Pure inertia≤0.6kn,RMS
Speed accuracy/GNSS Combination≤0.4kn,RMS
Startup time≤10sec
Input/output3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time≤1hr
Position accuracyPure inertia1nm/48h,CEP
INS/DVL Combination≤0.3%D,RMS
INS/GNSS Combinationbetter than GNSS
Heading AccuracyPure inertia≤0.04°sec(L),RMS
INS/GNSS Combination≤0.02°,RMS
Pitch & Roll AccuracyPure inertia≤0.02°,RMS
INS/GNSS Combination≤0.01°,RMS
CharacteristicsPower consumption＜40W
Dimensions(Lmm×Wmm×Hmm)232×186×160mm
Weight＜8.2kg
Temperature -40℃~60℃
Shock15g,Half-sine wave 11ms
Input VoltageDC24V(±25%)
coolingConduction to mounting plate
Vibration 20~2000Hz,6.06g
MTBF＞10000 hours
