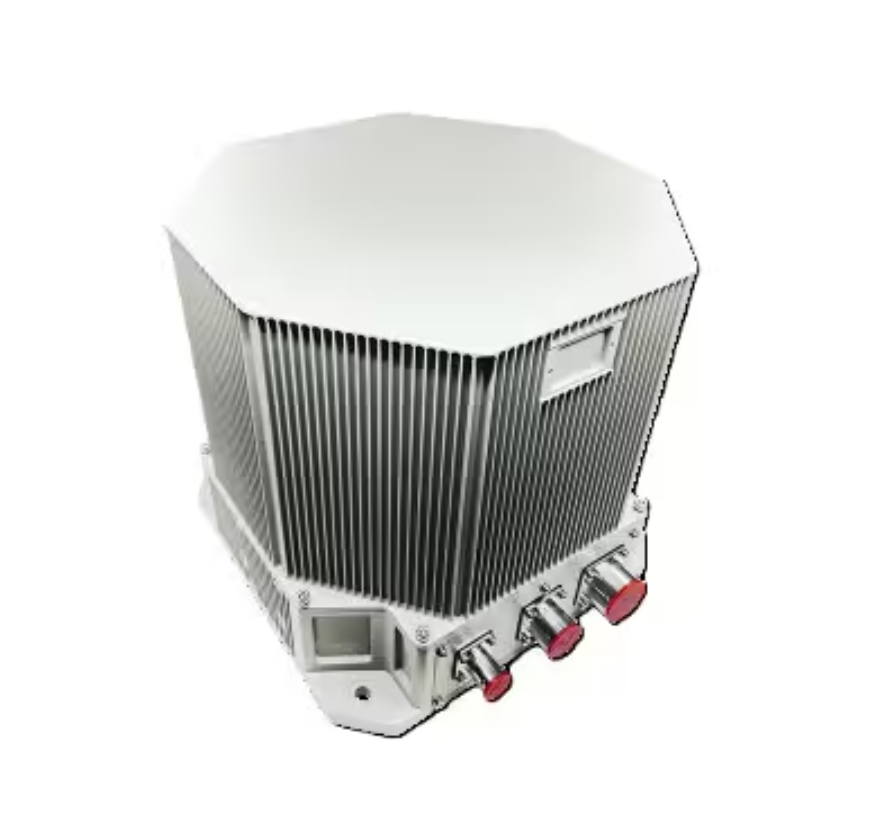

INT-D-M12 Autonomous FOG Ships Inertial Navigation System 24V With Quartz Accelerometers

Product Description

Maritime RLG INS(INT-D-M12)


Our advanced marine inertial navigation system combines laser/FOG technology with quartz accelerometers in an innovative "strapdown with modulation" configuration. The high-speed navigation computer processes real-time data to deliver superior accuracy across multiple operational modes - including autonomous inertial, satellite-aided, and velocity-combined navigation - ensuring comprehensive positioning solutions for all marine applications.

SeriesMaritime Inertial Navigation System(INS-M)
TypeINT-D-M12
AccelerometerMonths Bias Repeatability(1σ)≤30μg
Months Scale Factor Accuracy(1σ)≤30ppm
GyroBias Repeatability(1σ)≤0.01°/hr
Scale Factor Accuracy(1σ)≤10ppm
Random walk(1σ)≤0.003°/√hr
FeaturesAngular Rate≥±400°/sec
Angular Acceleration100000°/sec2
Acceleration＞25g
Angular Attitude Any Orientation
Speed accuracy/Pure inertia≤0.6kn,RMS
Speed accuracy/GNSS Combination≤0.4kn,RMS
Startup time≤10sec
Input/output3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time≤30min or ≤1hr
Position accuracyPure inertia≤1nm/6h or ≤1nm/12h ,CEP
INS/DVL Combination≤0.3%D,RMS
INS/GNSS Combinationbetter than GNSS
Heading AccuracyPure inertia≤0.02°sec(L),RMS
INS/GNSS Combination≤0.01°,RMS
Pitch & Roll AccuracyPure inertia≤0.01°,RMS
INS/GNSS Combination≤0.01°,RMS
CharacteristicsPower consumption＜40W
Dimensions(Lmm×Wmm×Hmm)193×169×160mm
Weight＜6.5kg
Temperature -40℃~60℃
Shock15g,Half-sine wave 11ms
Input VoltageDC24V(±25%)
coolingConduction to mounting plate
Vibration 20~2000Hz,6.06g
MTBF＞10000 hours
