INT-D-L1 Multi Platform Optical Automotive Inertial Navigation System GNSS Ins System ODM
stars, based on 0reviews
Product Tag:
INT-D-L1 Multi Platform Optical Automotive Inertial Navigation System GNSS Ins System ODMMulti Platform Optical Automotive Inertial Navigation System GNSS Ins System Multi Platform Optical Automotive Inertial Navigation System GNSSAutomotive Inertial Navigation System GNSS Ins System Multi Platform Optical Automotive Inertial Navigation SystemINT-D-L1 Multi Platform Optical Automotive Inertial Navigation System GNSS Ins System ODMDetail Information
Place of OriginChinaBrand NameINTModel NumberINT-D-L1Alignment Time:≤8minPosition Accuracy/10min Zero Speed Correction:≤10m,CEPPosition Accuracy/Inertial/odometer Combination:≤0.3%D,RMSPosition Accuracy/INS/GNSS Combination:Better Than GNSSHeading Accuracy/North Finding/orientation Accuracy:≤1.0mil,RMSHeading Bearing Keeping Accuracy/2h:≤1.0mil,RMSHeading Accuracy/INS/GNSS Combination:≤0.5mil,RMSPitch & Roll Accuracy:≤0.35mil,RMSDimensions:195×160×108mmWeight:＜3.9kgTemperature:-40℃~60℃Input Voltage:DC24V(±25%)Highlight:ODM Automotive Inertial Navigation System
, Gnss Automotive Inertial Navigation System
, ODM gnss ins system

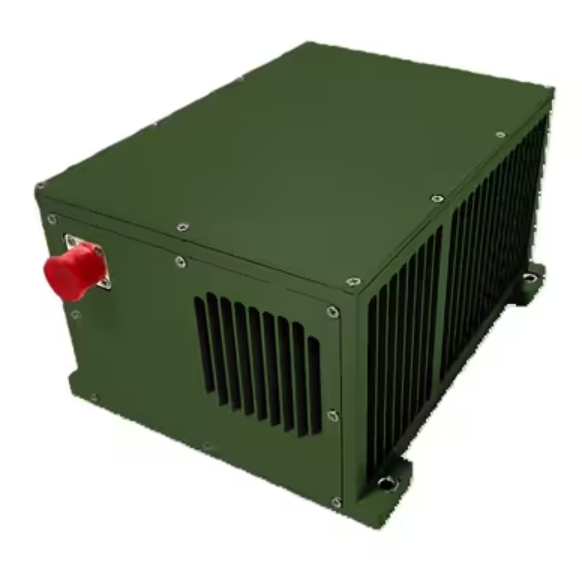

Product Description Land RLG INS (INT-D-L1)
The multi-platform optical navigation system utilizes precision RLG/FOG sensors with quartz accelerometers in a versatile strapdown design. Supporting both military (armored vehicles) and civilian (high-speed rail, agriculture) applications.
it delivers: 1) Adaptive alignment; 2) Robust positioning through ZUPT and sensor fusion; 3) Performance from Arctic to plateau conditions; 4) Continuous operation reliability.
Series Land Inertial Navigation System(INS-L) Type INT-D-L1 Accelerometer Months Bias Repeatability(1σ) ≤30μg Months Scale Factor Accuracy(1σ) ≤30ppm Gyro Bias Repeatability(1σ) ≤0.008°/h Scale Factor Accuracy(1σ) ≤10ppm Random walk(1σ) ≤0.003°/√hr Features Angular Rate ≥±400°/sec Angular Acceleration 100000°/sec2 Acceleration ＞25g Angular Attitude Any Orientation Input/output 3 RS422 full-duplex serial ports, 1 100M Ethernet port Alignment time ≤8min Position accuracy 10min zero speed correction ≤10m,CEP INS/Odometer combination ≤0.3%D,RMS INS/GNSS combination better than GNSS AHRS Applications Performance Heading Accuracy North finding/orientation accuracy ≤1.0mil,RMS Heading bearing keeping accuracy/2h ≤1.0mil,RMS INS/GNSS combination ≤0.5mil,RMS Pitch & Roll Accuracy ≤0.35mil,RMS Characteristics Power consumption ＜20W Dimensions 195×160×108mm Weight ＜3.9kg Temperature -40℃~60℃ Shock 15g,Half-sine wave 11ms Input Voltage DC24V(±25%) cooling Conduction to mounting plate Vibration 20~2000Hz,6.06g MTBF ＞20000 hours
Detail Information
Place of Origin
China
Brand Name
INT
Model Number
INT-D-L1
Alignment Time:
≤8min
Position Accuracy/10min Zero Speed Correction:
≤10m,CEP
Position Accuracy/Inertial/odometer Combination:
≤0.3%D,RMS
Position Accuracy/INS/GNSS Combination:
Better Than GNSS
Heading Accuracy/North Finding/orientation Accuracy:
≤1.0mil,RMS
Heading Bearing Keeping Accuracy/2h:
≤1.0mil,RMS
Heading Accuracy/INS/GNSS Combination:
≤0.5mil,RMS
Pitch & Roll Accuracy:
≤0.35mil,RMS
Dimensions:
195×160×108mm
Weight:
＜3.9kg
Temperature:
-40℃~60℃
Input Voltage:
DC24V(±25%)
Highlight:
ODM Automotive Inertial Navigation System
,Gnss Automotive Inertial Navigation System
,ODM gnss ins system
Product Description
Land RLG INS (INT-D-L1)
The multi-platform optical navigation system utilizes precision RLG/FOG sensors with quartz accelerometers in a versatile strapdown design. Supporting both military (armored vehicles) and civilian (high-speed rail, agriculture) applications.
it delivers: 1) Adaptive alignment; 2) Robust positioning through ZUPT and sensor fusion; 3) Performance from Arctic to plateau conditions; 4) Continuous operation reliability.
| Series | Land Inertial Navigation System(INS-L) | ||
| Type | INT-D-L1 | ||
| Accelerometer | Months Bias Repeatability(1σ) | ≤30μg | |
| Months Scale Factor Accuracy(1σ) | ≤30ppm | ||
| Gyro | Bias Repeatability(1σ) | ≤0.008°/h | |
| Scale Factor Accuracy(1σ) | ≤10ppm | ||
| Random walk(1σ) | ≤0.003°/√hr | ||
| Features | Angular Rate | ≥±400°/sec | |
| Angular Acceleration | 100000°/sec2 | ||
| Acceleration | ＞25g | ||
| Angular Attitude | Any Orientation | ||
| Input/output | 3 RS422 full-duplex serial ports, 1 100M Ethernet port | ||
| Alignment time | ≤8min | ||
| Position accuracy | 10min zero speed correction | ≤10m,CEP | |
| INS/Odometer combination | ≤0.3%D,RMS | ||
| INS/GNSS combination | better than GNSS | ||
| AHRS Applications Performance | Heading Accuracy | North finding/orientation accuracy | ≤1.0mil,RMS |
| Heading bearing keeping accuracy/2h | ≤1.0mil,RMS | ||
| INS/GNSS combination | ≤0.5mil,RMS | ||
| Pitch & Roll Accuracy | ≤0.35mil,RMS | ||
| Characteristics | Power consumption | ＜20W | |
| Dimensions | 195×160×108mm | ||
| Weight | ＜3.9kg | ||
| Temperature | -40℃~60℃ | ||
| Shock | 15g,Half-sine wave 11ms | ||
| Input Voltage | DC24V(±25%) | ||
| cooling | Conduction to mounting plate | ||
| Vibration | 20~2000Hz,6.06g | ||
| MTBF | ＞20000 hours | ||
