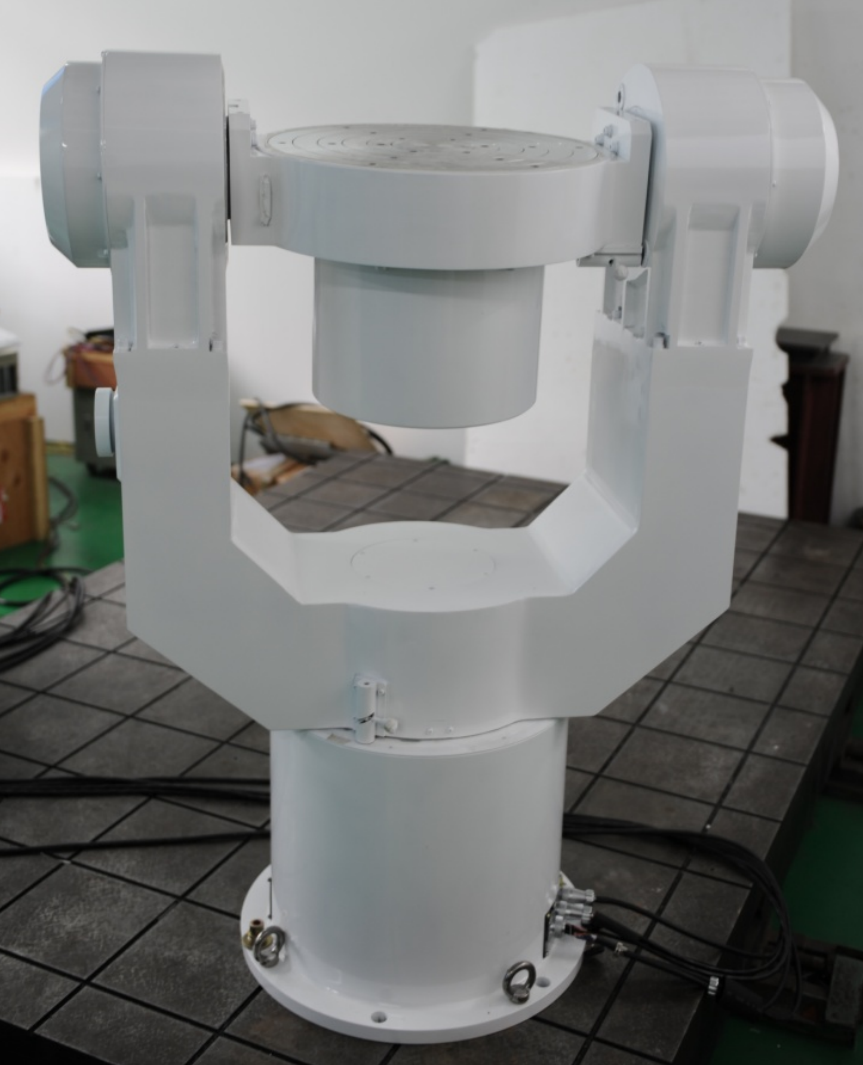

INT-DZT2 Series Two-Axis Turntable

Main Technical Specifications

Tilt Error: ±2 arcsec

Axes Perpendicularity: ±3 arcsec

Rotational Angle Range: Continuous unlimited rotation

Operating Modes: Positioning, rate control, swing motion

Angular Position Measurement Accuracy: ±1 arcsec

Angular Position Measurement Resolution: 0.36 arcsec

Angular Position Measurement Repeatability: ±1 arcsec

Angular Position Control Accuracy: ±1 arcsec

Speed Range: Inner axis 0.001°/s ~ 300°/s; Outer axis 0.001°/s ~ 300°/s

Speed Resolution: 0.0001°/s

Speed Accuracy & Stability: 1×10⁻³ (1° average); 1×10⁻⁴ (10° average); 1×10⁻⁵ (360° average)

Maximum Acceleration: Inner axis 100°/s², Outer axis 100°/s²

Slip Ring: Customizable user interface (electromagnetic noise ≤ 100m
