High-performance INT-D04 Type Gyro Compass and Inertial Navigation System

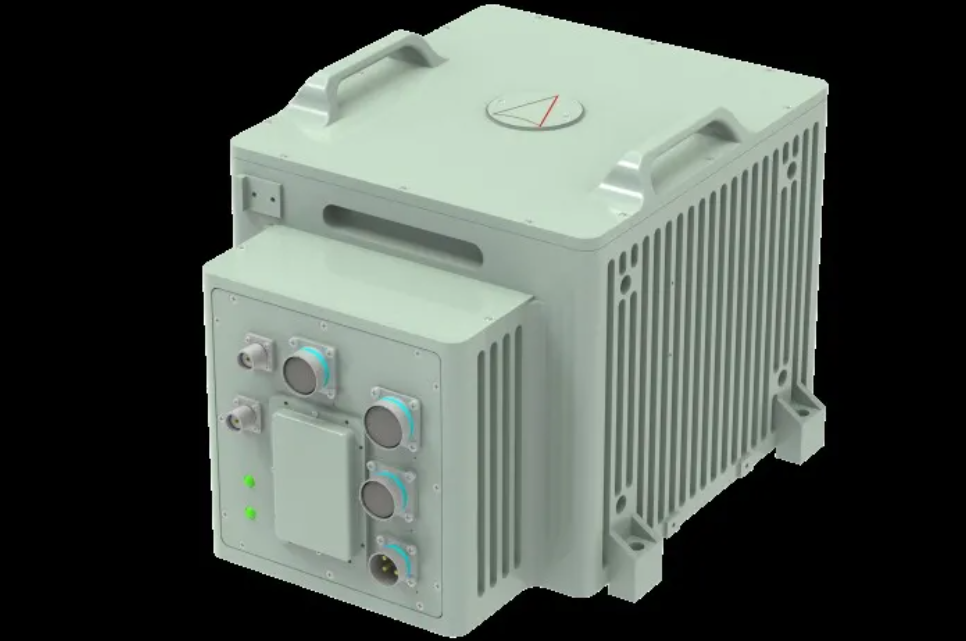

The INT-D-04 Type Gyro Compass and Inertial Navigation System is a high-performance inertial navigation unit based on strap down digital ring-laser-gyro technology. Utilizing three single-axis Type-90 ring laser gyroscopes and quartz flexible accelerometers, this system delivers accurate data even in harsh combat situations.
Key Characteristics
  • Advanced ring laser gyro technology
  • Combat proven reliability
  • AHRS+INS integrated in a single unit
  • Anti-disturbance self-alignment while moving
  • Multiple connection options: GPS/GNSS/Speed LOG DVL/USBL input
  • Configurable navigation modes: INS/Integrated Navigation
  • Compatible with all types of carriers
Applications
  • Navy ships and vessels
  • Missile and aircraft systems
  • Land Army pointing and targeting
  • Submarine navigation
Performance Specifications
ParameterSpecification
Setting time10 mins (data available)
30 mins (full attitude performance)
Position without aiding1nm/4h, CFP 50
Velocity without aiding0.8m/s, 1σ
Roll & pitch without aiding0.01 deg, 1σ
Heading without aiding0.01*sec(φ)deg, 1σ
Roll & pitch with GPS aiding0.005deg/h, 1σ
Heading with GPS aiding0.008deg, 1σ
Rotation rate range±400deg/s
Acceleration range±15g
Environmental Specifications
ParameterSpecification
Working temperature-40°C to 70°C
Storage temperature-55°C to 85°C
Vibration0.04g²/hz @ 20-2000hz
Shock (working condition)30g @ 6m/s
Shock (survival)50g @ 11m/s
Electrical & Physical Specifications
ParameterSpecification
Power Supply28V DC
InterfaceRS422/RS232/CAN/Ethernet
Size (W*D*H)328*280*225mm
Weight≤21kg
Power Consumption≤35W
