AJU-X300D antenna douuble 16 channel is anti-jamming satellite navigation terminal designed for industry users supporting GPS-L1 GAL-E1 and BDS-B1 frequencies with anti-jamming capabilities.Each frequency paint can withstand up to 15 jammers .

stars, based on 0reviews
1000items available
Add inquiry cart Inquire Now

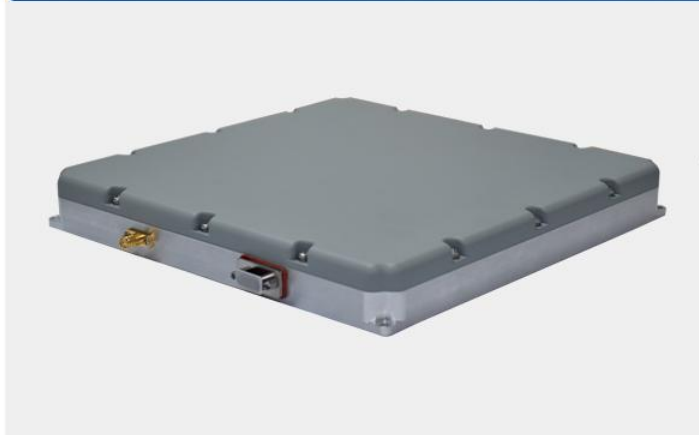

AJU-X300D antenna is a anti-jamming satellite navigation terminal designed for industry users,supporting GPS-L1,GAL-E1,and BDS-B1 frequencies with anti-jamming capabilities.Each frequency paint can withstand up to 15 jammers simultaneously.


Anti-interference capability：
Single≥ 110dBc
Seven≥ 95dBc
Fifteen≥ 80dBc
Anti-spoofing performance:
Output residual spoofing signal CN0≤ 20dB
Interference Type：
Band-limited Gaussian white noise interference,Spread spectrum matched filter interference
Pulse interference，sweep interference
Mixed interference
Anti-interference airspace\orientation0~360°、pitch-90~90°
VolumeΦ370mm×53mm
Power consumption≤40W
Weight≤3000g
RF output description：
Output signal frequency1561.098MHz/1575.42MHz
RF output power-70~-60dBm
Output impedance50 ohms
