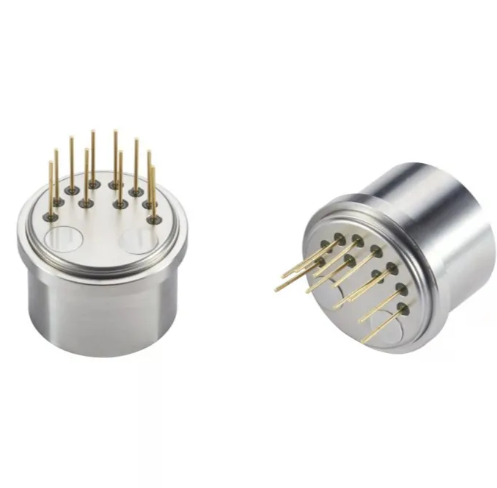

60g Oil Drilling Quartz Accelerometer Quartz Crystal Thermometer
stars, based on 0reviews
Detail Information
Place of Origin:
China
Production Name:
Inertial Accelerometer
Range:
60g
Weight:
<30g
Size:
Ф25.4X30mm
Noise:
≤5mv
Natual Frequency:
350~800 Hz
Scale Factor K1:
1.0±0.2 MA/g
Packaging Details:
sponge/box
Supply Ability:
500/month
Highlight:
60g Quartz Flexure Accelerometer
,Oil Drilling Quartz Flexure Accelerometer
,Oil Drilling Quartz Crystal Thermometer
Product Description
60g Quartz Flexure Accelerometer Quartz Crystal Thermometer For Oil Drilling
Product Specifications
| Attribute | Value |
|---|---|
| Production Name | Inertial Accelerometer |
| Range | 60g |
| Weight | <30g |
| Size | Ф25.4X30mm |
| Noise | ≤5mv |
| Natural Frequency | 350~800 Hz |
| Scale Factor K1 | 1.0±0.2 mA/g |
Product Description
High work temperature quartz crystal accelerometer for oil drilling. The accelerometer output current and the force received are linear output, allowing users to select the appropriate sampling resistor for highest accuracy output.
Built-in temperature sensor provides linear current output with temperature changes, enabling compensation of deviation value and scale factor to reduce temperature effects (optional). Suitable for both static and dynamic testing, this product serves as a standard vibration sensor.
Key Features
- Low lag
- High resolution
- High stability
- High accuracy
- Low power consumption
- Excellent overload capacity
- Compact size
- Cost-effective
- Broad measurement range
Performance Characteristics
| No. | Parameters | INT3-01 |
|---|---|---|
| 1 | Range | ±60g |
| 2 | Threshold | 5μg |
| 3 | Bias K0/K1 | ≤±5 mg |
| 4 | Scale factor K1 | 1.0±0.2 mA/g |
| 5 | Second order nonlinearity coefficient K2 | ≤±20μg /g² |
| 6 | 0g 4 hours short-term stability | ≤10 μg |
| 7 | 1g 4 hours short-term stability | ≤10 ppm |
| 8 | Bias comprehensive repeatability σK0 (1σ,1 month) | ≤15 μg |
| 9 | Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) | ≤15 ppm |
| 10 | Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) | ≤±20 μg /g² |
| 11 | Bias thermal coefficient (full temp. mean) | ≤±15 μg /℃ |
| 12 | Scale factor thermal coefficient (full temp. mean) | ≤±15 ppm /℃ |
| 13 | Noise (sampling resistance 840Ω) | ≤5mv |
| 14 | Natural frequency | 350~800 Hz |
| 15 | Bandwidth | 800~2500 Hz |
| 16 | Random vibration | 10g(20-2000Hz) |
| 17 | Impact | 150g,5ms,1/2sin |
| 18 | Working temperature | -55～+85℃ |
| 19 | Storage temperature | -60~+120℃ |
| 20 | Power supply | ±12~±15V |
| 21 | Consumption current | ≤±20mA |
| 22 | Thermal sensor | Ф25.4X30mm |
Customizable Options
- Size: Customizable
- Weight: ≤30g
Applications
- Drilling and Inclination Measurement
- Aeronautics and Astronautics
- Instruments and Equipment
Customer Service
- Pre-contract professional solution analysis based on project requirements
- Prompt response to inquiries within 24 hours
- Regular production updates and quality checking arrangements
- One-year product warranty with negotiable terms
- Lifetime online installation and testing support.
